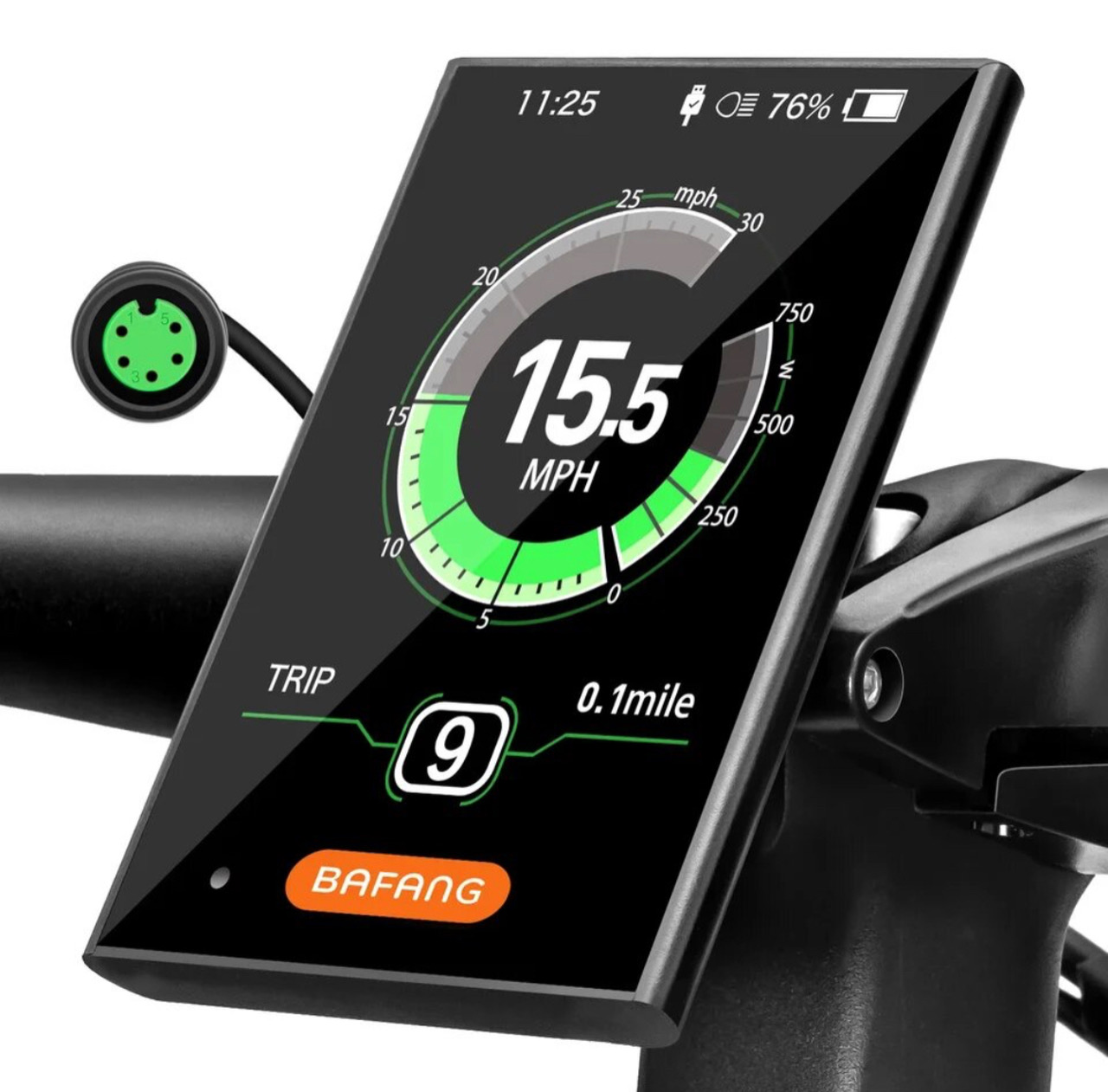

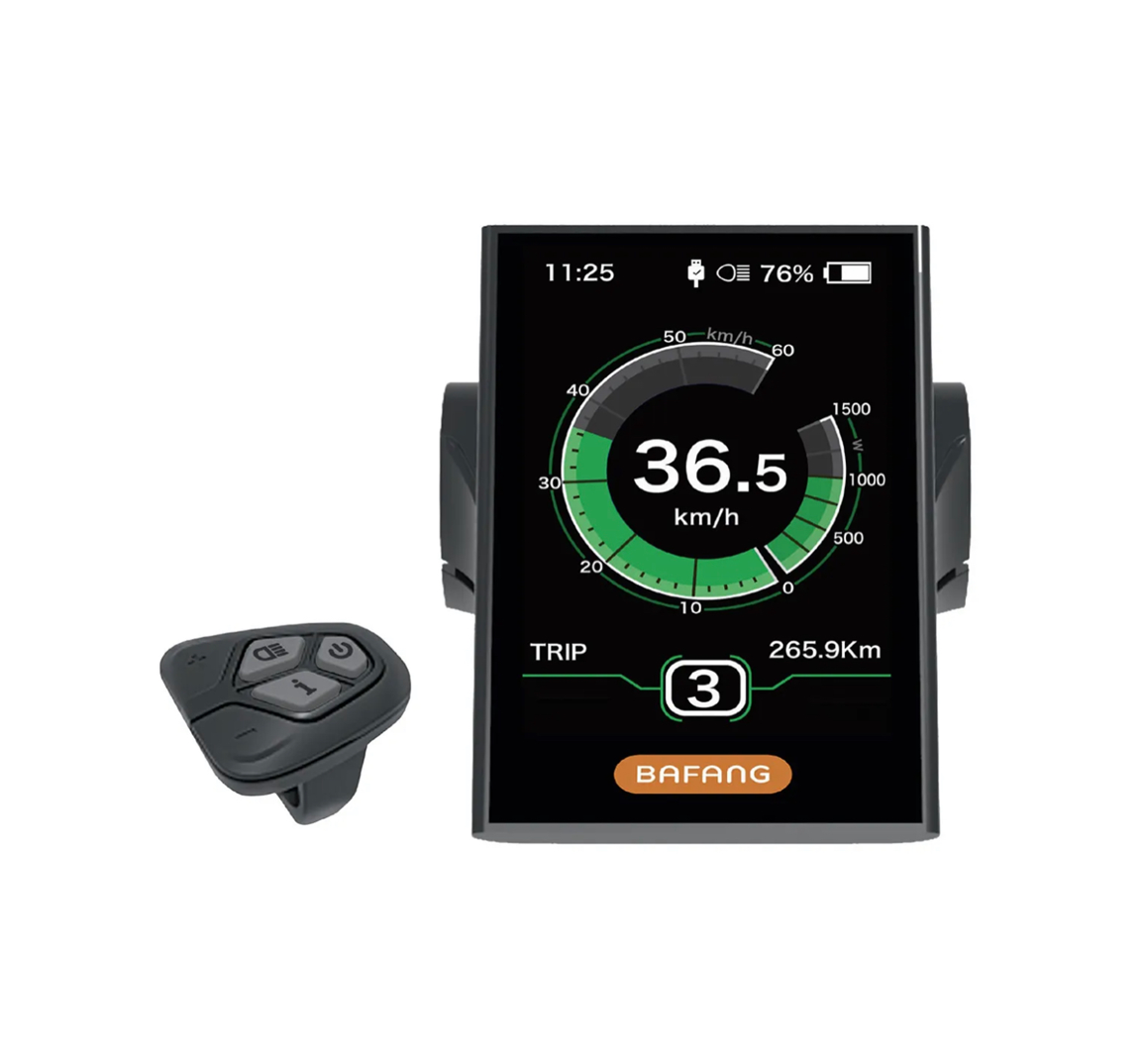

Display DPC-18

Display LCD DPC18 for BAFANG BBS01 BBS02 BBSHD

• Rated voltage: 36V/43V/48V DC• Rated current: 10mA lines(as shown in the figure)• Maximum operating current: 30mA

  • When power off, leak current is less than: 1uA

  • Operating current supplied to controller: 50mA

  • Operation temperature: -20℃~45℃

  • Storage temperature: -30℃~70℃

  • IP level: IP65

  • Storage humidity: 30%-70% Features： Use of a two-way serial communication protocol, simple operation of the display via the external 5-key keypad.

  • Speed display: displaying the real-time speed as SPEED, the maximum speed as MAXS and the average speed as AVG.

  • Km or mile: The user can choose between km and mile.

  • Intelligent battery level indication: With an optimization algorithm, a stable display of the battery level is ensured, and the problem of fluctuant battery level indication common with other displays is avoided. The user can define display mode of battery level as voltage or percentage.

  • Automatic light-sensitive lights: The headlight, taillight and display backlight will be automatically turned on/ off depending on lighting conditions.

  • 5 levels off display backlighting: 10% is most dark, 100% is highest light.

  • 6-Level-Support: setting power Levels 0 to 5.

  • Trip distance indication: The maximum distance displayed is 99999. Single-trip distances TRIP or the total distance TOTAL can be displayed.

  • Display of error messages

  • Walk assistance

  • Two kind of riding mode: “ECO”/“SPORT”

  • Intelligent display: including motor’s output power W for riding, output current A, Remaining miles RANGE, consumption of energy CALORIES.

  • Set boot password: user can set boot pass word by himself.

  • Set parameters: Various parameters, e.g. power assistance level, wheel diameter, speed limit etc., can be set on the computer via a communication cable. Please see the detailed in the description of the computer parameter configuration.

  • Through the display, it can switch wheel diameter and speed limit.
