52V 20Ah Triangle E-Bike Battery
Description
52V 20Ah Triangle E-Bike Battery – High-Performance Lithium Pack for Secure Frame Integration

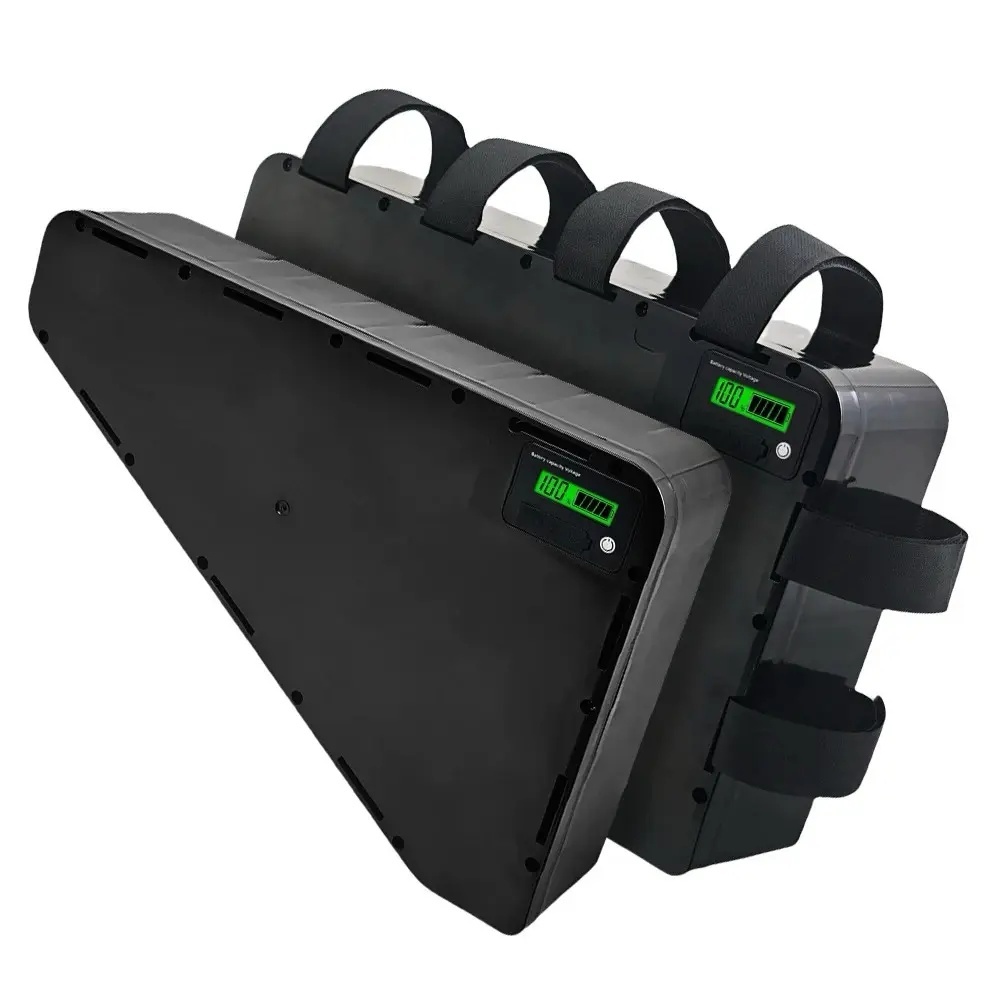

The 52V 20Ah triangle battery is built for riders looking for high performance, extended riding range and secure frame integration on their electric bike setup. Designed to fit inside the bicycle frame triangle, it delivers excellent weight distribution and a clean, professional look while maximizing capacity and autonomy.
With a powerful 52V output and 20Ah capacity, this lithium battery is ideal for high-power eBike conversion kits, mountain bikes, trekking bikes and long-distance commuting applications. The durable hard-shell construction protects the battery cells, while integrated straps ensure stable mounting on a wide range of bicycle frames. An integrated LCD voltage display allows quick battery monitoring, and USB charging support adds convenience for charging mobile devices during rides.
52V 20Ah Triangle Battery Technical Specifications
Electrical Parameters

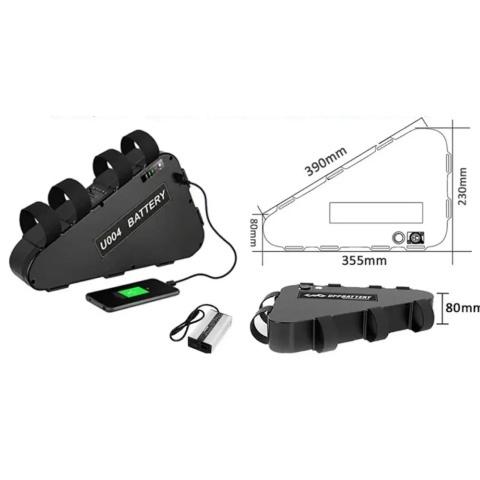

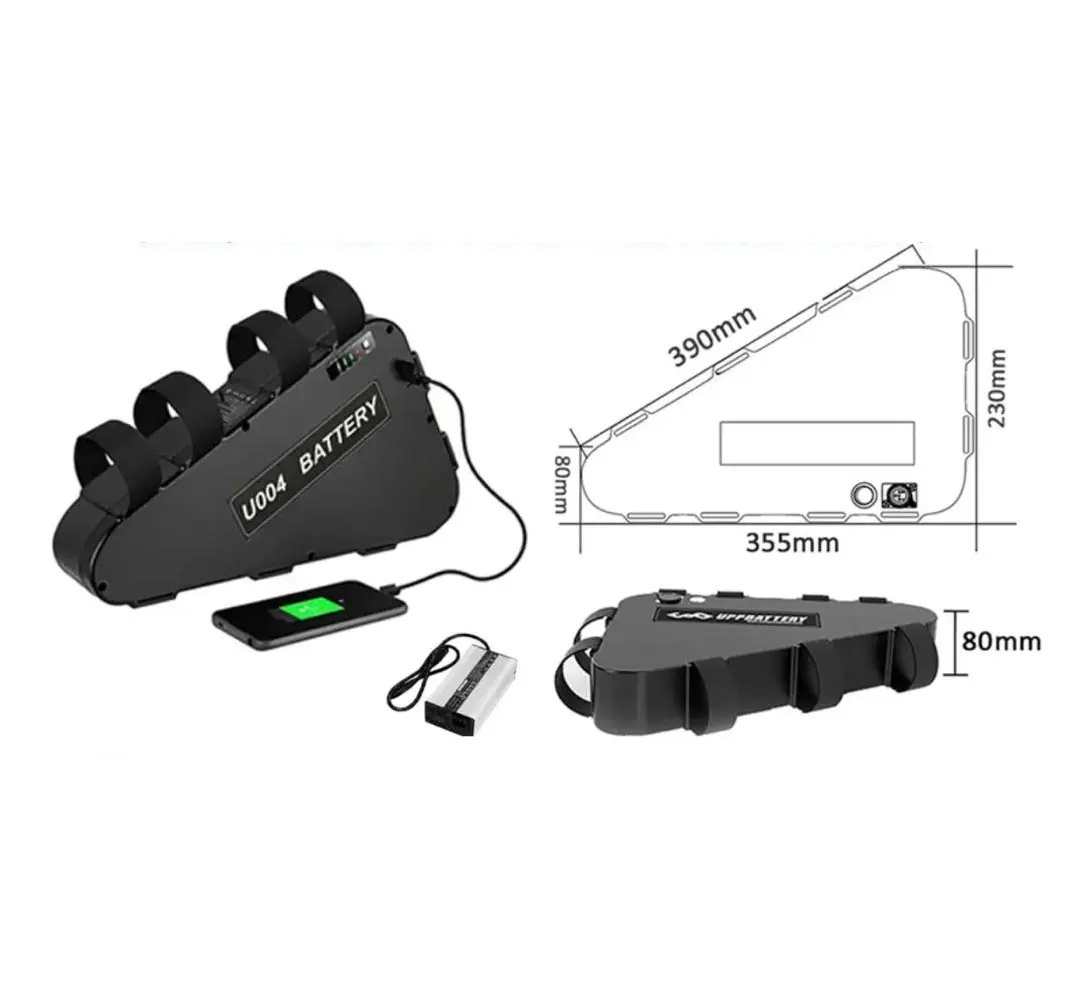

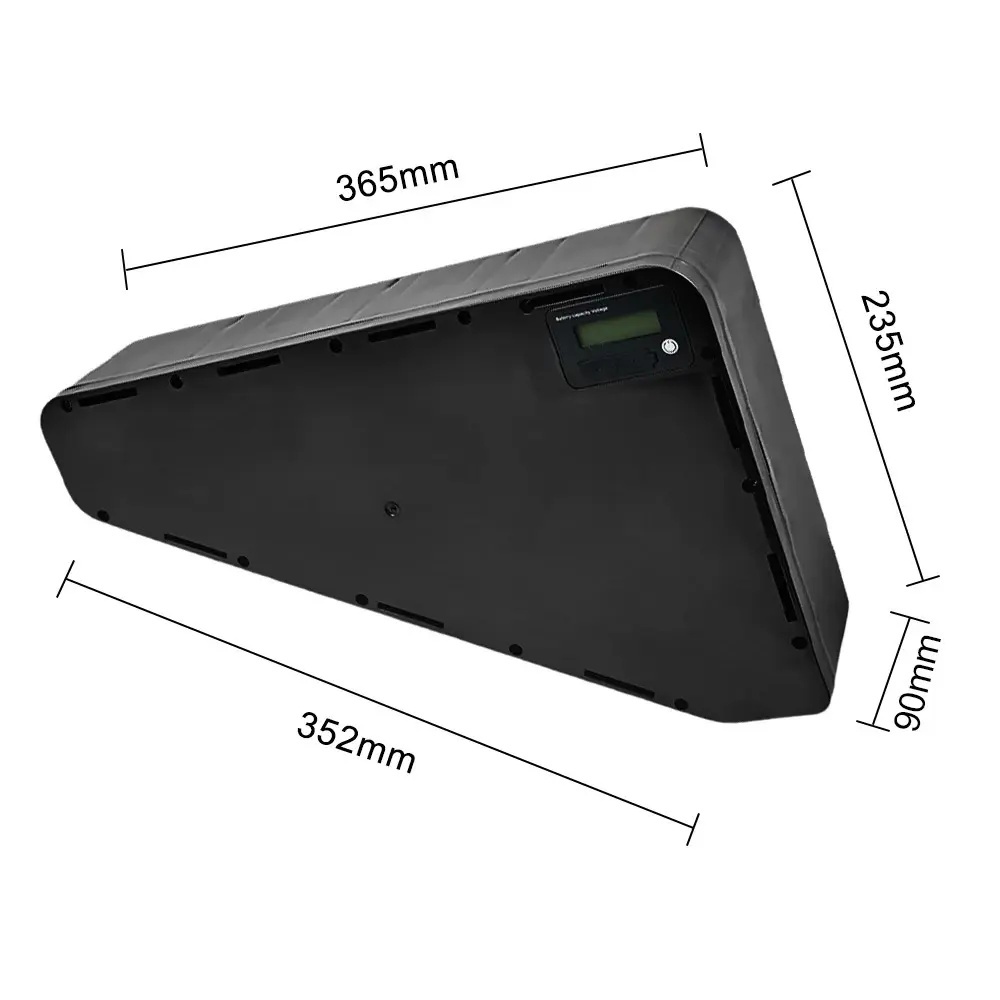

Dimensions and Construction

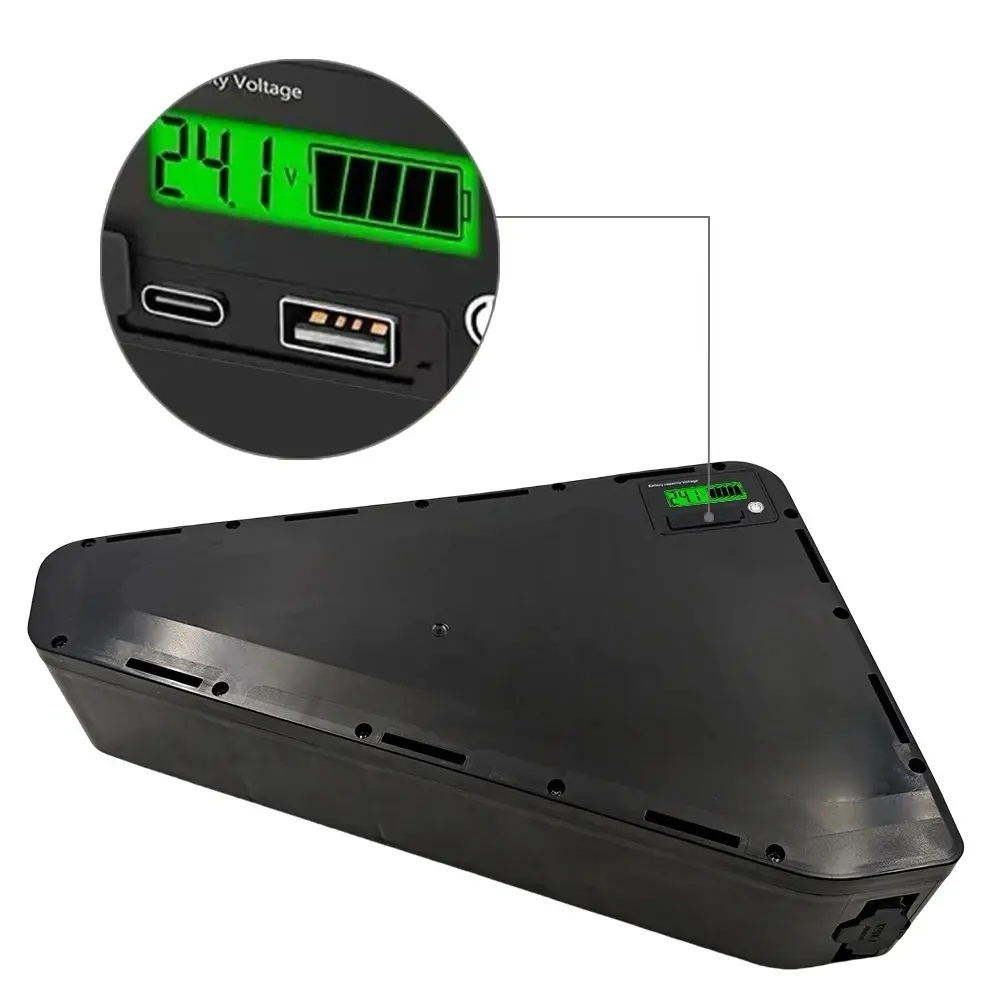

Display and Connectivity
Why the 14S configuration delivers a performance edge
The 14S configuration means 14 cells connected in series, each contributing around 3.6–4.2V to the pack's total voltage. This extra series cell over a 13S (48V) pack lifts the nominal voltage to 52V, giving high-power conversion kits, mountain bikes and mid-drive systems more torque and top speed at the same current draw.
BMS and cell protection
The battery integrates a BMS rated up to 40–60A, built with premium Samsung 21700 cells, which monitors each cell's voltage, temperature and operating current in real time, preventing overcharging, deep discharge and cell imbalance. The hard-shell casing is IP65 rated, protecting against light rain and splashes in normal use conditions.
What Type of Conversions It's Recommended For
High-Power Hub Motor Systems
The 52V output and up to 60A BMS support demanding hub motor conversion kits with strong acceleration and top speed.
Mountain and Trekking eBikes
Balanced frame weight distribution and secure strap mounting suit MTB and trekking builds tackling varied terrain.
Long-Range Commuting
Excellent riding autonomy for long-distance commuter eBikes and DIY builds that need to go the distance.
Installation, Maintenance and Safety
Installation Steps
- Check dimension compatibility with the space in the frame
- Secure the battery with the mounting straps
- Connect respecting polarity and connector type
- Check the LCD before first use
Maintenance
- Avoid discharging fully below 20%
- Store at 50–70% capacity for long periods
- Charge in a ventilated space, never unattended
- Avoid temperatures below 0°C or above 40°C
