Electric Bike Kit 250W — Rear Hub Motor for 26", 27.5" and 29" Wheels

Convert any bicycle into a road-legal, silent electric bike with the 250W brushless gearless direct-drive rear hub motor. EU pedelec limit, natural pedal assist, completely silent operation — complete kit, ready to fit, no frame modifications required.

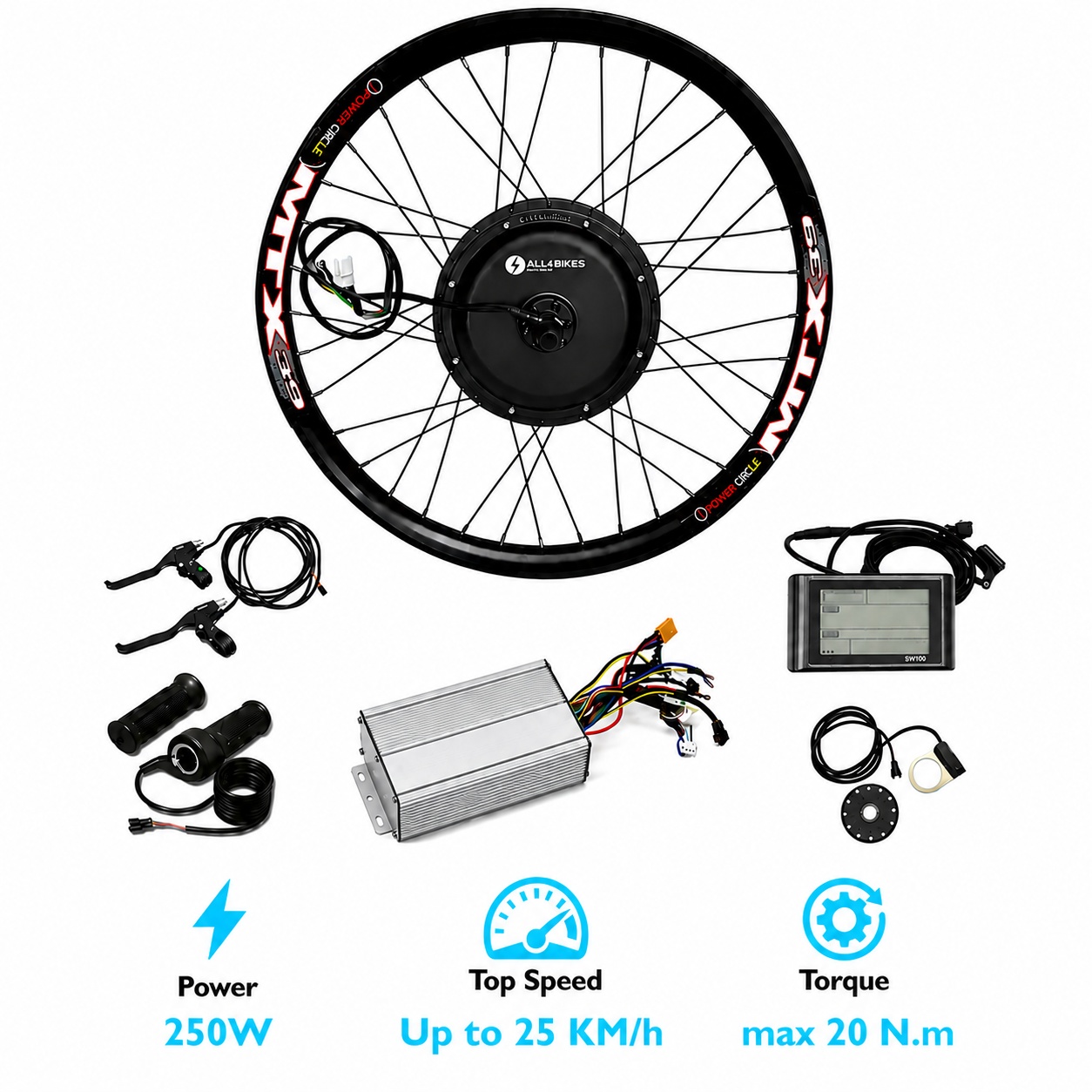

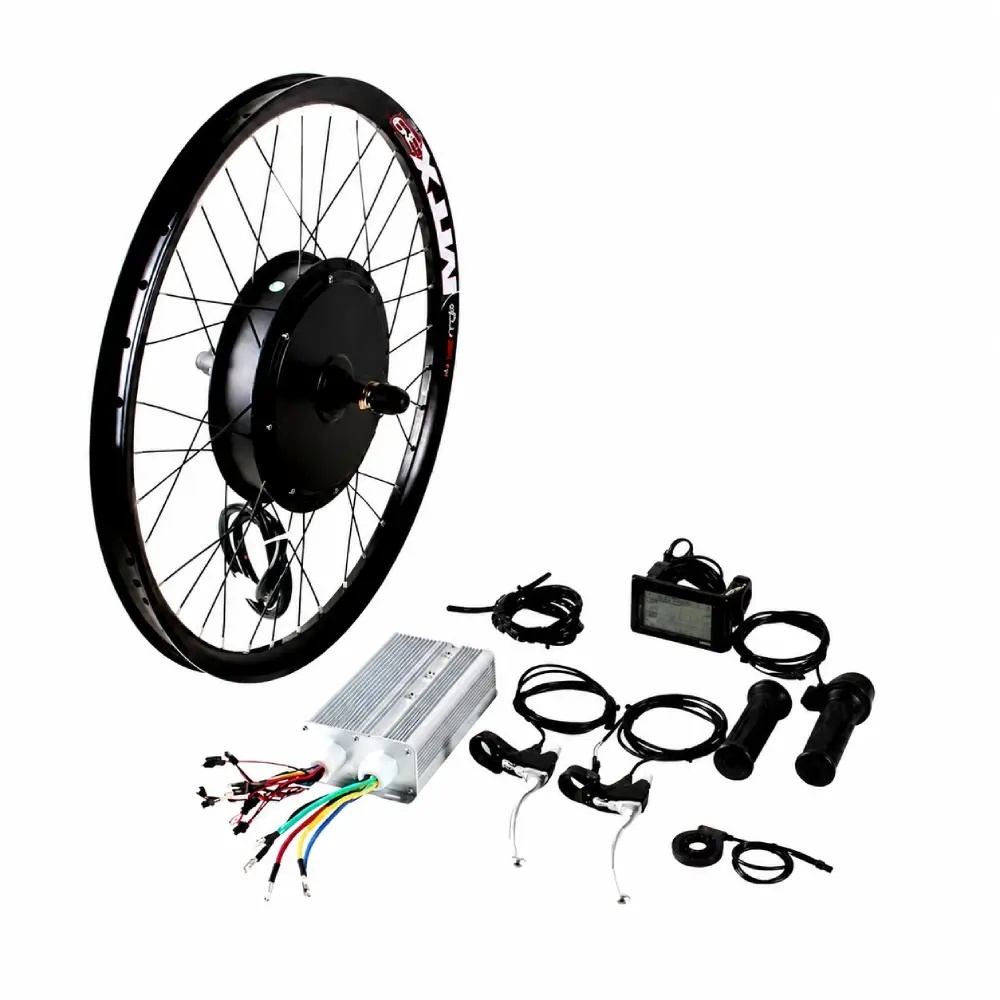

What's Included

• 250W brushless gearless direct-drive motor, laced into rear rim
• 36V/48V 17A controller with dual Hall / non-Hall mode
• SW900 LCD display with speed, battery level and ride data
• Full-twist throttle with battery indicator
• 12-magnet PAS sensor for natural pedal assist feel
• Brake levers with motor cut-off sensor
• Complete wiring harness and mounting hardware

Available for 26", 27.5" and 29" wheels. Double-wall aluminium rim, 12G spokes, standard 135mm rear axle spacing.

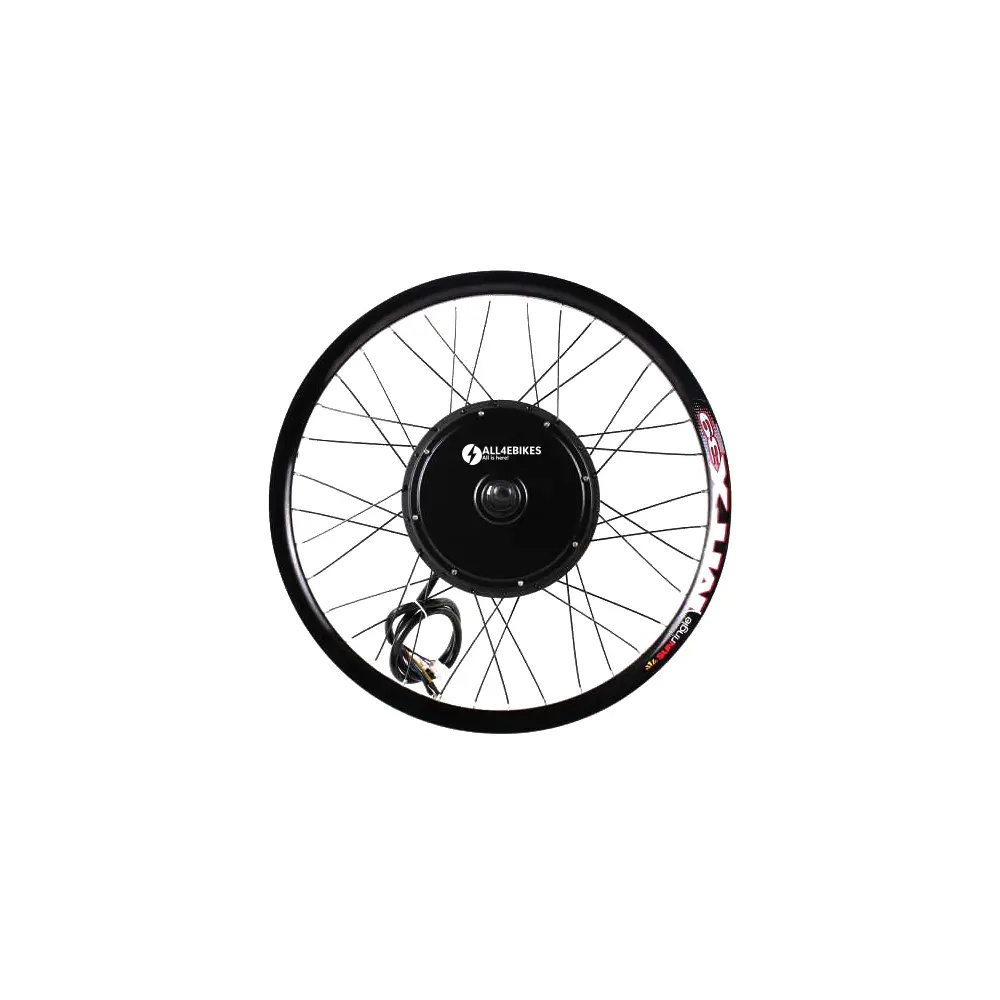

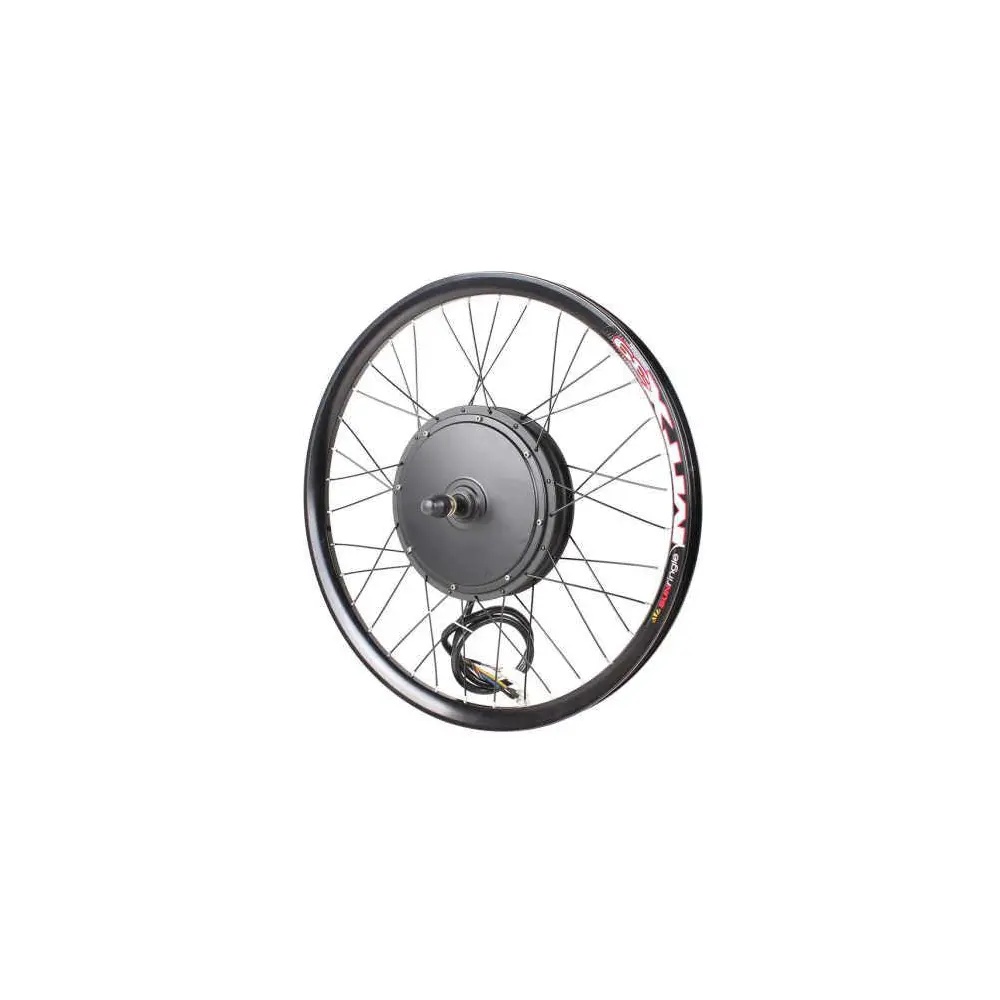

Direct-Drive Motor: No Gears, No Wear

The gearless direct-drive motor has no gears or moving mechanical parts — power is transferred magnetically direct from stator to rotor. The result: completely silent operation under 60 dB, zero mechanical wear and a practically unlimited service life. At 250W continuous power, the motor delivers smooth, progressive assist at peak efficiency for urban speeds of 20-25 km/h and maximum battery range. Sealed casing for all-weather use.

250W: EU Pedelec Legal Limit

250W motors meet the legal definition of a pedal-assist bicycle (pedelec) under EU Directive 2002/24/EC — free use on cycle paths and public roads, no registration, no licence, no mandatory insurance. Assist cuts out automatically at 25 km/h per the European standard.

Dual-Mode Controller — Built-In Redundancy

The 36V/48V 17A controller runs in Hall sensor mode as standard for smooth starts and precise throttle response. On any sensor fault, it switches automatically to non-Hall mode — the motor keeps running without interruption. Brake levers cut motor current instantly.

Who This Kit Is For

The 250W kit is chosen by urban commuters who want to arrive at work without effort or sweat, seniors and riders with reduced mobility who want to enjoy cycling again, and first-time DIY builders — the most accessible entry point in the range. Compatible with additional controllers and parts from our range.

Recommended Battery

The kit runs on 36V or 48V. We recommend the 36V 15Ah Downtube Battery — frame tube mounting, low weight, 50-80 km range and direct compatibility with the included controller. Further options are available in the eBike batteries category.

Parts and Other Kits

Replacement parts and accessories are available in the eBike parts section. If you need more power, compare the full conversion kits range — from 250W to 3000W.
