19%

SKU: 07

1000W Rear Hub Motor E-Bike Conversion Kit MTX

[1]

Size: 27.5in

26in

27.5in

29in

Optional - Baterie - Kit 1000W/1500W

Kit-ul de conversie nu contine baterie. Daca nu aveti deja baterie, va rog sa alegeti de aici una.

48V 17.5Ah Downtube E-Bike Battery

RON 1,525.44

48V 22.5Ah Downtube E-Bike Battery

RON 1,747.06

52V 24Ah Downtube E-Bike Battery

RON 2,025.24

52V 20Ah Triangle E-Bike Battery

RON 1,863.68

48V 20Ah Triangle E-Bike Battery

RON 1,611.21

Optional - Display LCD UKC1+ Color

Kitul contine deja display SW900 inclus. Aceasta optiune este pentru upgrade de la SW900 la UKC1+

UKC1+ E-Bike Display

RON 400.72

In stock

RON 1,532.48 RON 1,891.95 valid until 30 Sep

Free shipping

How can we help?

Ask for details

Send us a message

Fast shipping Free over 500 RON

Warranty included Verified products

Secure payment Card, COD, bank transfer

Description

1000W MTX E-Bike Conversion Kit – Rear Hub Motor for 26", 27.5" and 29"

Turn any MTB, trekking or cargo bike into a high-performance e-bike with the 1000W brushless gearless direct-drive motor. Strong torque from a standstill, genuine continuous power – not a short-lived peak – and a dual-mode controller with Hall and non-Hall effect. A complete kit, ready to fit, with no frame modifications.

1000W 36V / 48V / 52V Rear Hub 26″ / 27.5″ / 29″ Direct-Drive ~9 kg

The 1000W kit is the point where a conversion kit truly becomes a performance platform: sustained torque on long climbs, cargo loads and technical trails, with no thermal limiting and no compromise on reliability. Available in all three wheel sizes, it's the most versatile kit in the range for builders who want real power, not just numbers on a spec sheet.

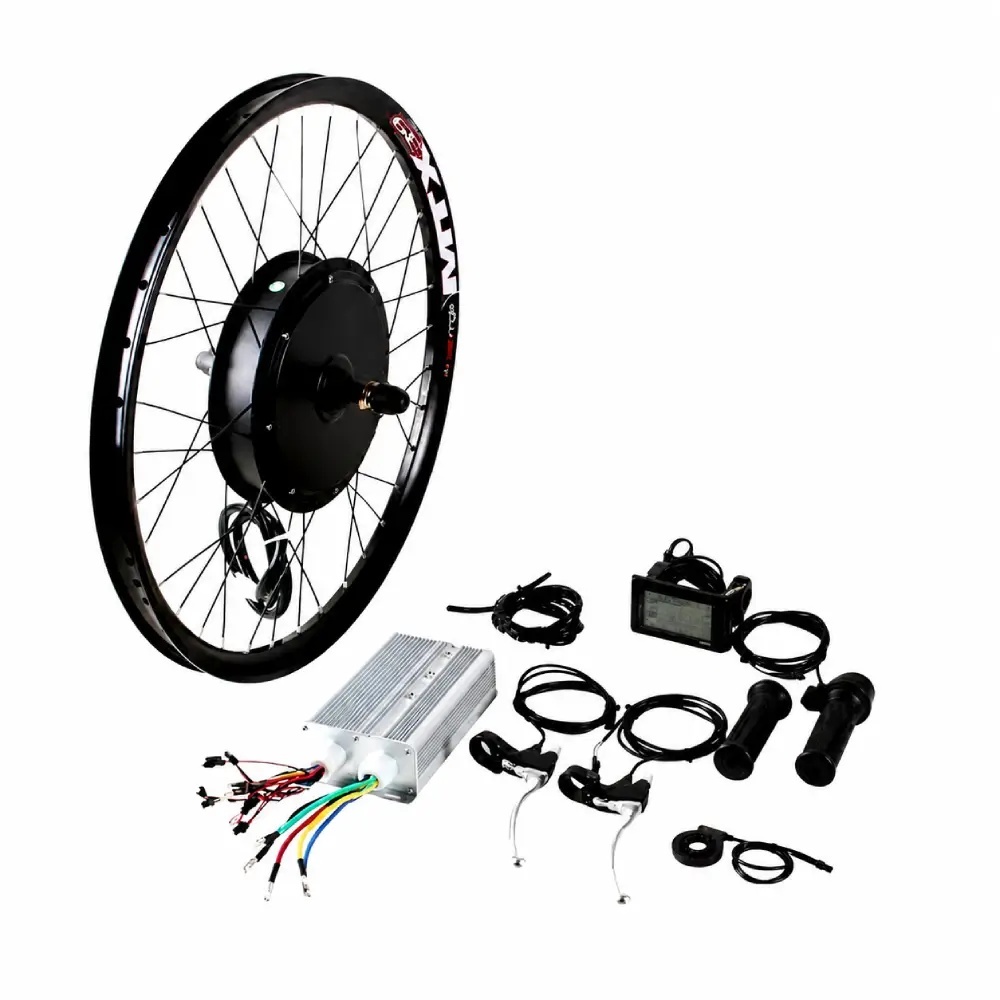

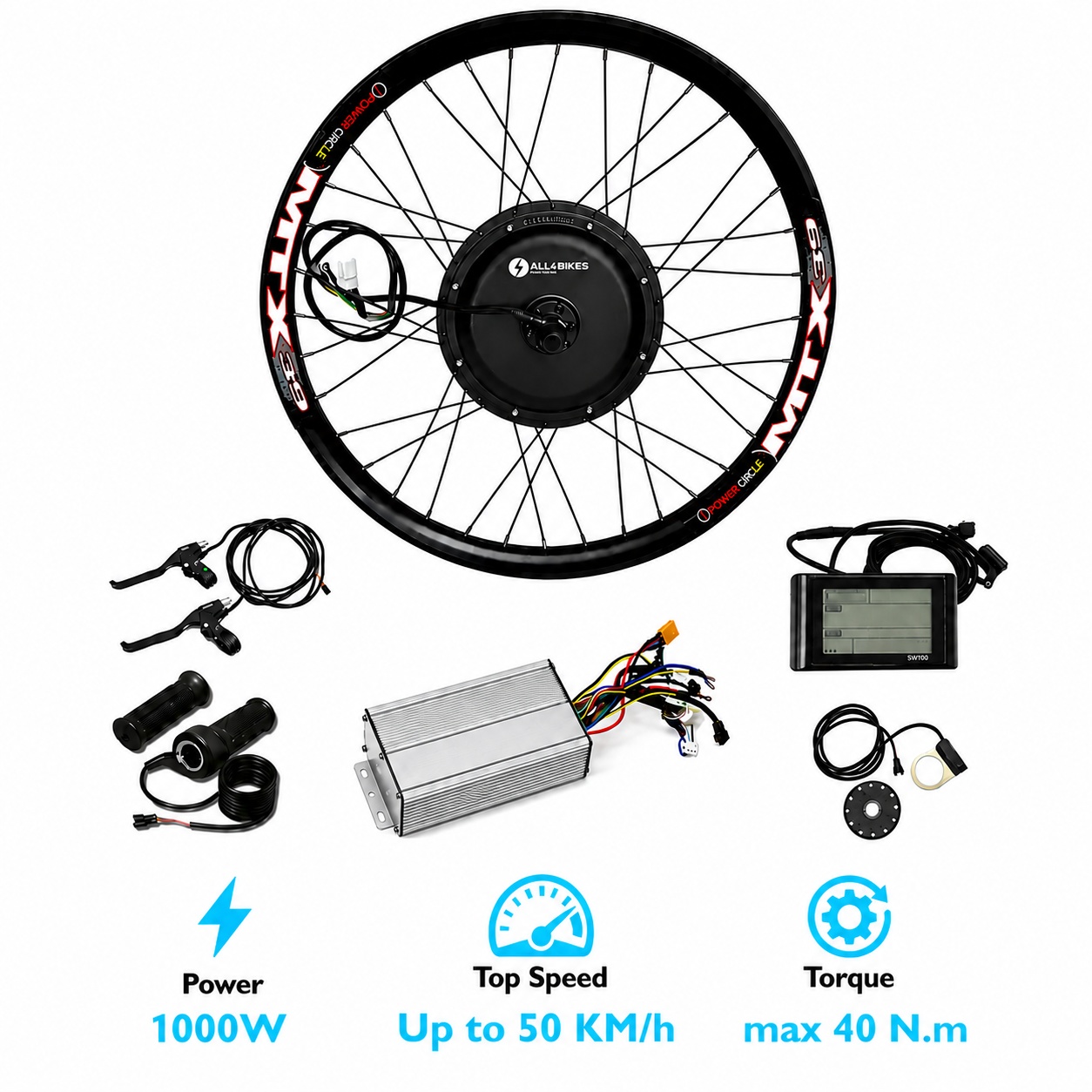

What's Included in the 1000W Kit

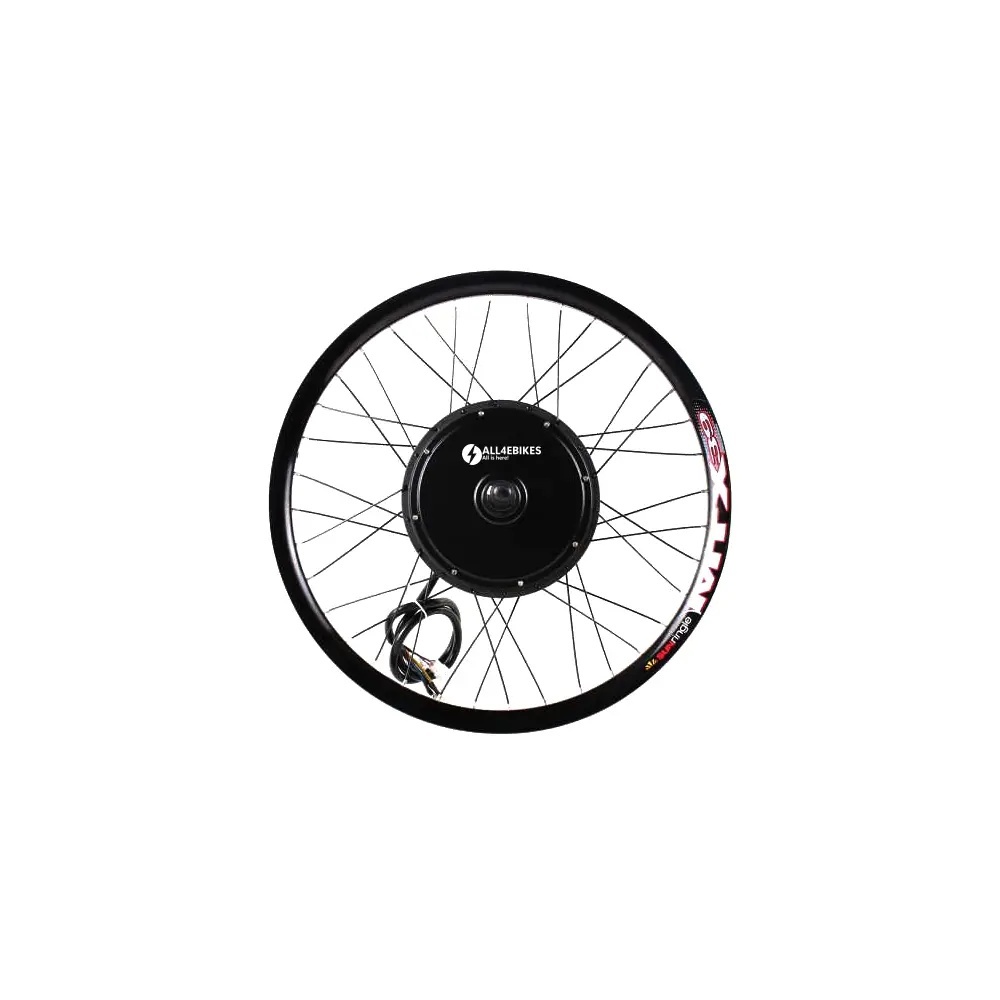

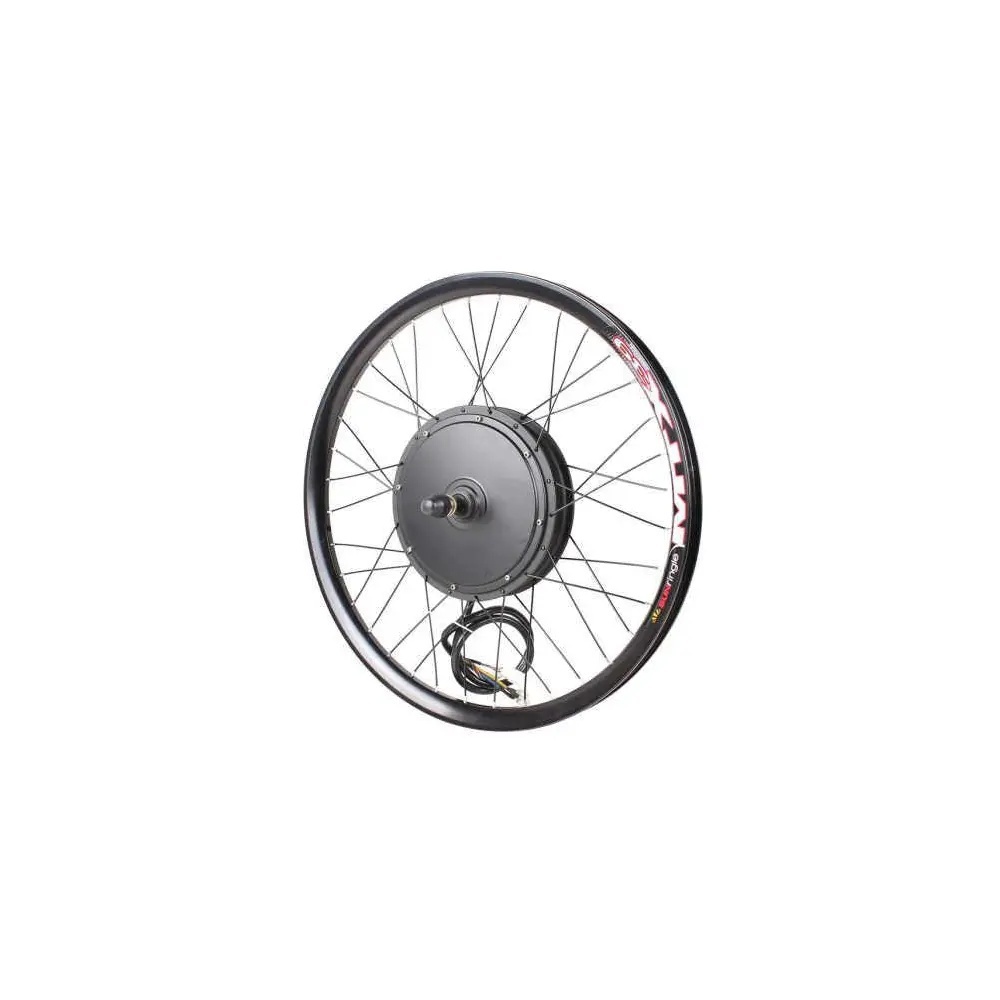

1000W brushless gearless direct-drive motor, built into the rear rim
48V 25A controller with 18 MOSFETs, dual Hall / non-Hall mode
SW900 LCD display with speed, battery level and ride data
Full-twist throttle with battery indicator
12-magnet PAS sensor for natural pedalling assistance
Brake levers with motor cut-off sensor
Complete wiring harness and mounting hardware

Available for 26", 27.5" and 29" wheels. Double-wall aluminium rim, 12G spokes, standard 135mm rear axle.

1000W Kit Technical Specifications

Motor Parameters

Rated power1000W

Motor typeBrushless DC

ConstructionGearless / Direct-Drive

Gradient performance5–20% constant

Noise level< 60 dB

Wheel sizes26″ / 27.5″ / 29″

Controller Parameters

Voltage48V

Max current25A

MOSFETs18

Operating modeDual Hall / non-Hall

PAS sensor12-magnet

DisplayLCD SW900

Compatibility

Recommended battery15Ah – 25Ah

Battery voltage36V / 48V / 52V

RimDouble-wall, alu.

Spokes12G

Rear axle135mm standard

Kit weight~9 kg

Direct-drive motor: no gears, no wear

The gearless direct-drive motor has no gears or moving mechanical parts – force is transferred magnetically straight from the stator to the rotor. Completely silent operation under 60 dB, zero mechanical wear and a practically unlimited service life. At 1000W continuous power, the motor delivers the same firm response on a 5% gradient and on a 20% gradient, at the start of a ride and after 40 km, with no thermal limiting. Sealed casing for use in any weather.

25A dual-mode controller – added reliability

The 48V 25A controller with 18 MOSFETs runs primarily on Hall sensors for smooth start-up and precise throttle response. If the sensors fail, it automatically switches to non-Hall mode – the motor keeps running without interruption, with no risk of stalling mid-route. The brake levers cut power to the motor instantly for safe stopping.

Worth knowing: 1000W significantly exceeds the standard 250W legal limit for pedal-assist e-bikes in the EU – check current local regulations on registration before riding on public roads.

Who It's For

Tough Routes and Long Climbs

For commuters with demanding routes and long climbs, where sustained power makes a daily difference.

Cargo Loads of 30–50 kg

For cargo riders carrying 30–50 kg loads who need real torque, not just a brief power spike.

Technical Trail Riding

For trail riders who want constant power on technical sections, regardless of gradient or obstacles.

Available in 26" for urban manoeuvrability, 27.5" for mixed terrain, and 29" for stability at speed and easy roll-over of obstacles. Compatible with controllers and accessories from our range for custom configurations.

Recommended Battery

The kit is optimised for 48V, also compatible with 36V/52V at a minimum of 17.5Ah. We recommend the 48V 22.5Ah Downtube battery – real-world range of 60–90 km, mounted on the down tube, built-in USB port and key-lock security. Other compatible options are available in the eBike Batteries category.

Parts and Other Kits

Spare parts and accessories are available in the eBike Parts section. For a full comparison with the other power options, see the entire conversion kits range – from 250W up to 3000W.

Frequently Asked Questions About the 1000W Kit

What range does the 1000W kit offer?

With the recommended 48V 22.5Ah battery, real-world range is roughly 60 to 90 km, depending on terrain, load and riding style.

Can the 1000W kit carry a loaded cargo bike?

Yes, the kit is specifically recommended for cargo riders carrying 30–50 kg loads, delivering sustained torque with no thermal limiting.

What's the difference compared to the 500W kit?

The 1000W kit offers double the continuous power of the 500W kit, with a stronger controller (25A vs 22A) and constant performance on gradients from 5% up to 20%.

Do I need to register a 1000W kit?

1000W significantly exceeds the standard 250W limit for pedal-assist e-bikes in the EU. We recommend checking current local regulations before riding on public roads.

Which wheel size should I choose for mixed terrain?

For mixed terrain, 27.5" offers the recommended balance between manoeuvrability and stability. 26" suits city riding better, while 29" is better for speed and obstacles.
